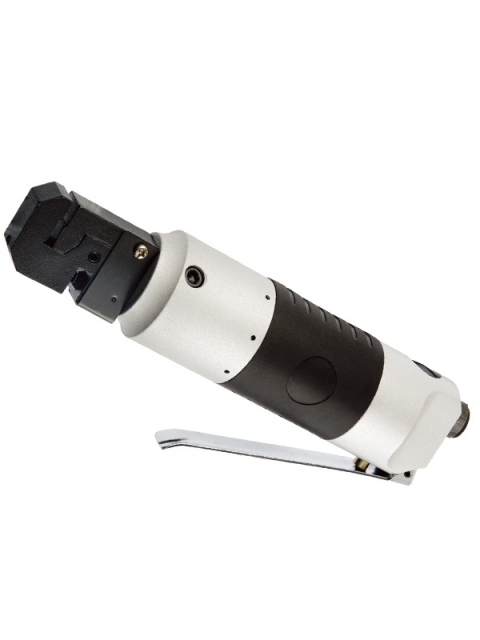

PT-303 5mm AIR PUNCH / FLANGE TOOL
PT-303A 8mm AIR PUNCH / FLANGE TOOL
PT-303B 5.5mm AIR PUNCH / FLANGE TOOL
PT-303C 3mm AIR PUNCH / FLANGE TOOL
PT-303D 4mm AIR PUNCH / FLANGE TOOL
|
Model No. |
PT-303 |
PT-303A |
PT-303B |
PT-303C |
PT-303D |
REMARK |
|
|
Cutting Capacity
|
Punch Die |
5 |
8 |
5.5 |
3 |
4 |
|
|
Thickness |
1.6 |
1.2 |
1.6 |
1.6 |
1.6 |
|
|
|
Ovarall Length |
Inch |
9.76 |
9.76 |
9.76 |
9.76 |
9.76 |
|
|
mm |
248 |
248 |
248 |
248 |
248 |
|
|
|
Air Consumption |
CFM |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Air Inlet |
(PT/NPT) |
1/4" |
1/4" |
1/4" |
1/4" |
1/4" |
|
|
Air Hose |
(ID) |
3/8" |
3/8" |
3/8" |
3/8" |
3/8" |
|
|
Net Weight |
Kgs |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
|
|
Lbs |
2.75 |
2.75 |
2.75 |
2.75 |
2.75 |
|
|
