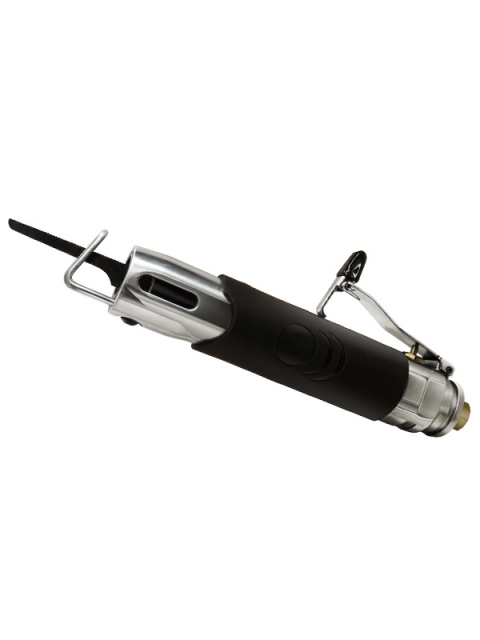

PT-602 AIR SAW ROTARY MOTOR TYPE

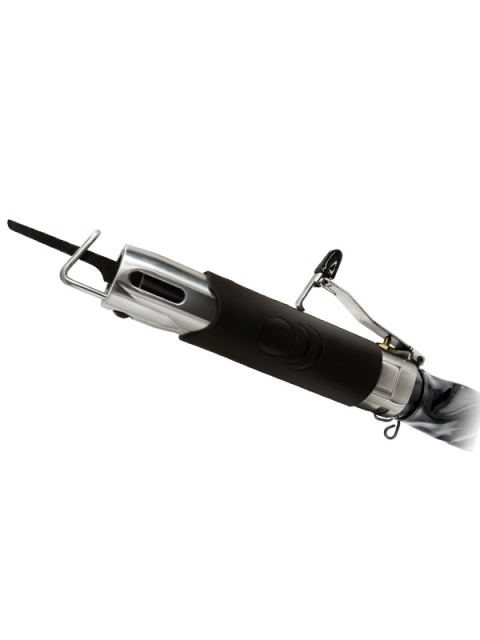

PT-602H AIR SAW ROTARY MOTOR TYPE WITH HOSE
Model No. |
PT-602 |
PT-602H |
REMARK |
|
Cutting Capacity |
Steel |
2 |
2 |
|
Alum. |
3 |
3 |
|
|
Stroke Length |
mm |
6 |
6 |
|
Stroke Per Minutes |
(S.P.M.) |
10000 |
9500 |
|
Ovarall Length |
Inch |
9.05 |
9.05 |
|
mm |
230 |
230 |
|
|
Air Consumption |
CFM |
1.4 |
1.4 |
|
Air Inlet |
(PT/NPT) |
1/4" |
1/4" |
|
Air Hose |
(ID) |
3/8" |
3/8" |
|
Saw Blade |
32T/24T |
32T/24T |
|
|
Files |
5mm - 4pcs |
5mm - 4pcs |
|
|
Net Weight |
Kgs |
0.85 |
0.8 |
|
Lbs |
1.87 |
1.75 |
|
